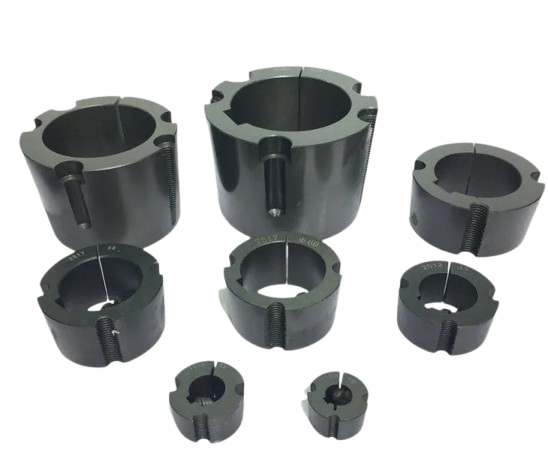

Fenner Taper Lock Bush
Fenner Taper Lock Bushes are designed to provide a secure and accurate connection between shafts and power transmission components. Their precision taper design ensures easy installation, quick removal, and reliable torque transmission, making them suitable for a wide range of industrial applications.

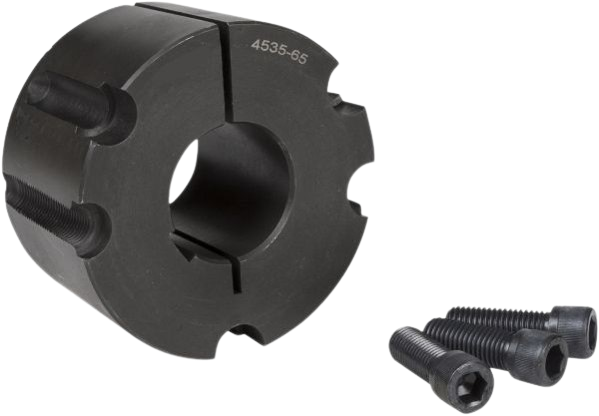

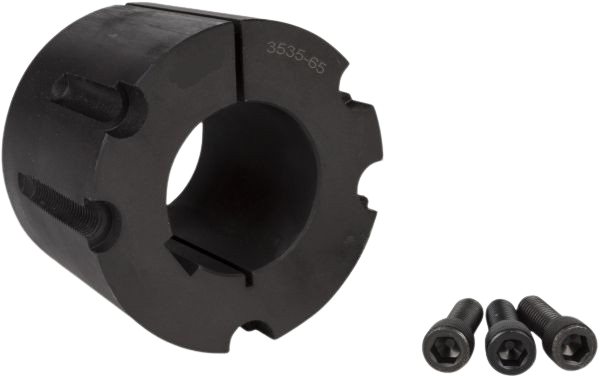

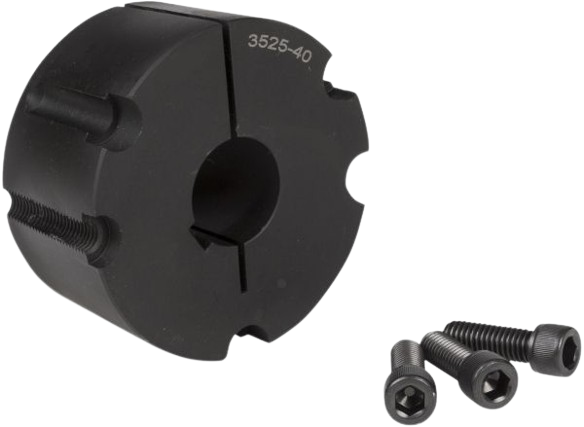

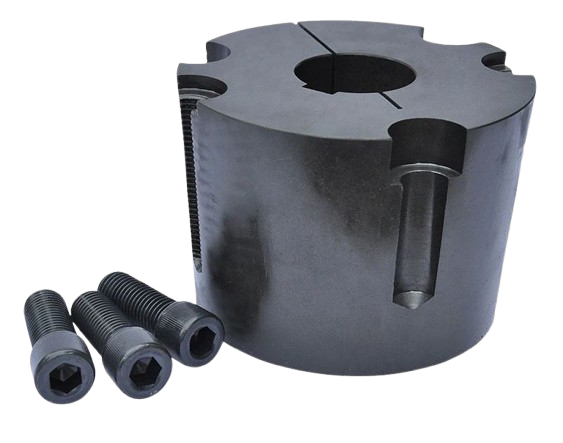

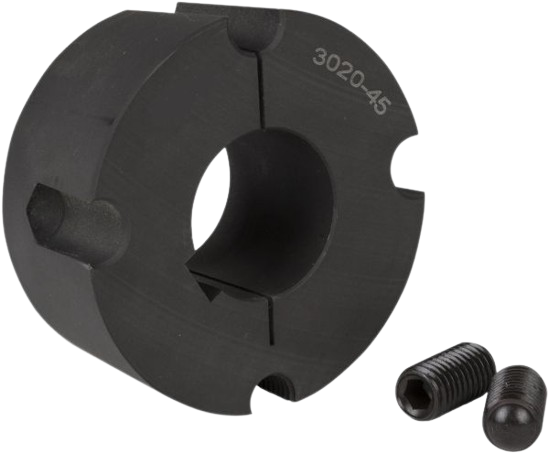

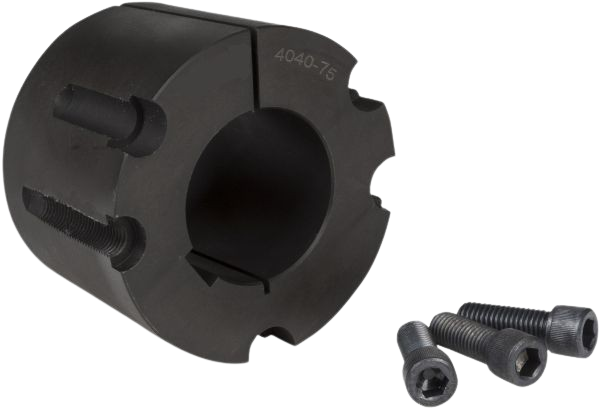

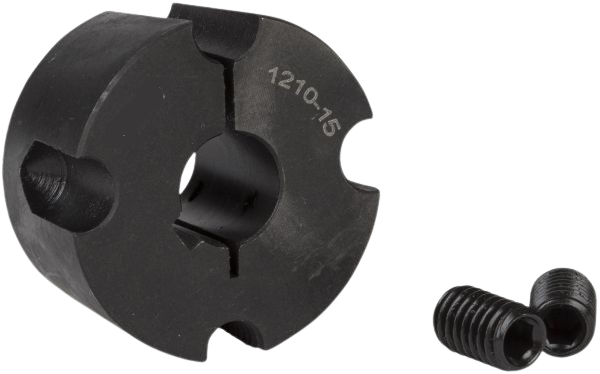

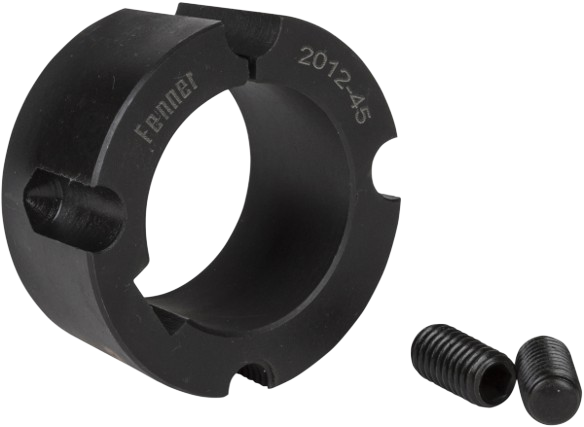

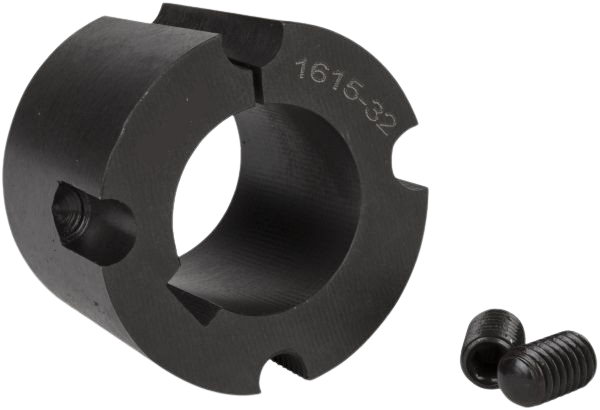

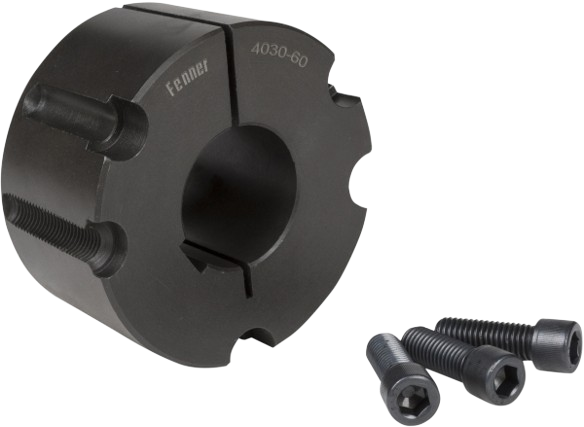

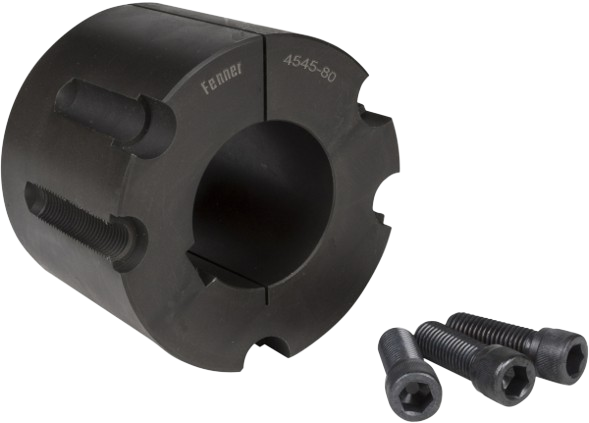

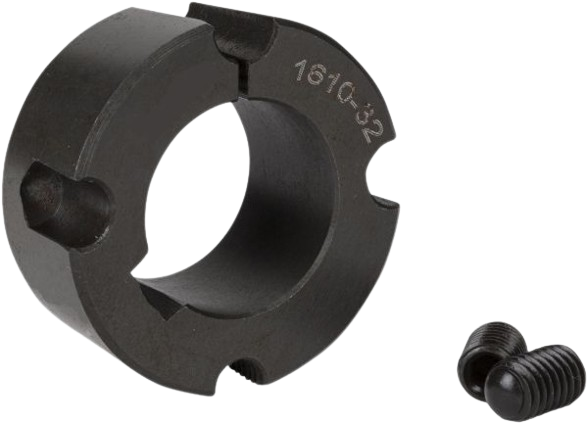

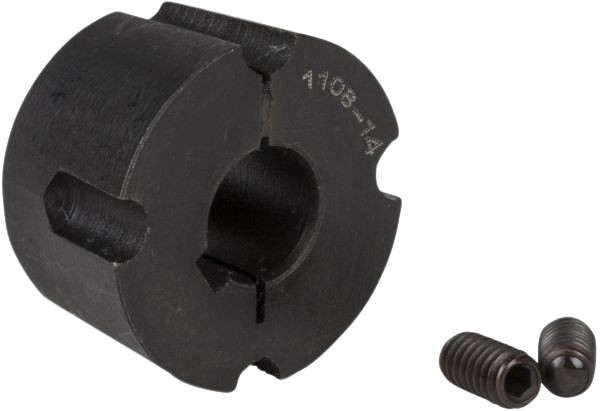

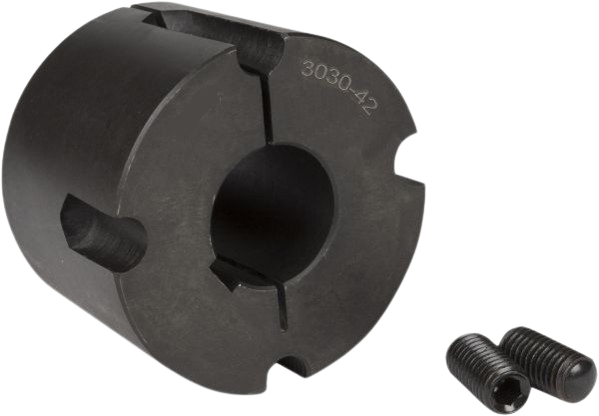

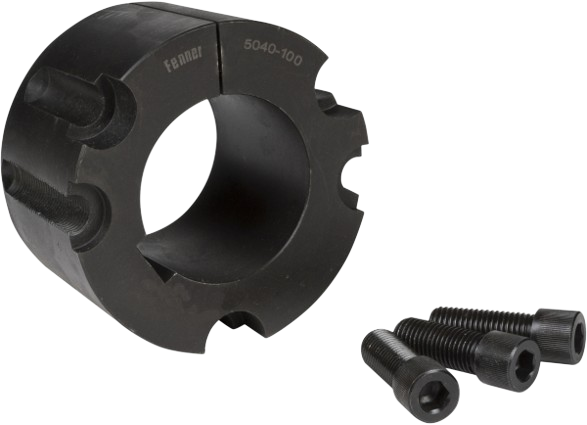

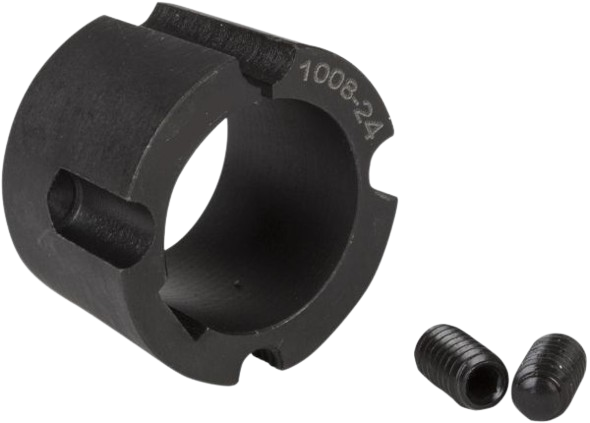

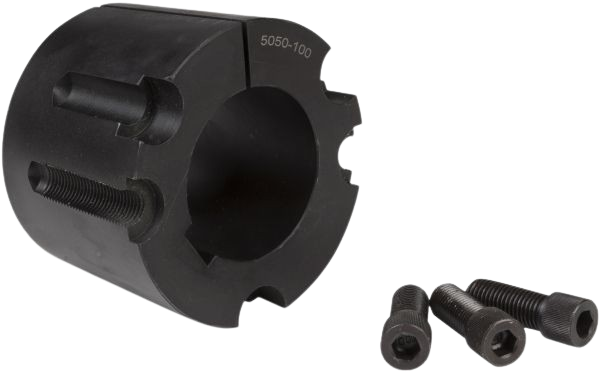

At Metal Magic, we offer a complete range of standard Taper Lock Bushes in sizes 1008, 1108, 1210, 1610, 1615, 2012, 2517, 3020, 3030, 3525, 3535, 4030, 4040, 4535, 4545, 5040, and 5050. We also manufacture customised bushes in larger sizes such as 6050 and 7060 according to customer drawings and application requirements.
We supply Fenner, SKF, and NMTG Taper Lock Bushes, along with our own Supreme make. With a focus on quality, precision, and dependable performance, we provide solutions that meet the needs of various industrial power transmission systems.
How to Order
Example:(1) STLB 2517 – PB Pilot Bore (2) STLB 2517 – 40 mm
STLB 2517 – 40 mm
S for Supreme
TLB = Taper-Lock Bush
2517 = Bush Size
40 mm = Bore/Shaft Size
NTLB 2517: Bushing Size

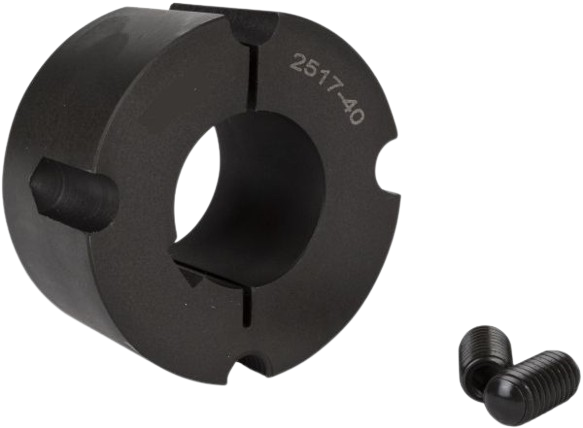

The Taper-Lock bushing size is defined by four digits. The first two digits represent the approximate maximum bore size, while the final two digits represent the bushing length. For example, bush number 2517 has an approximate maximum bore of 2.5 inches and a total length of approximately 1.7 inches.
