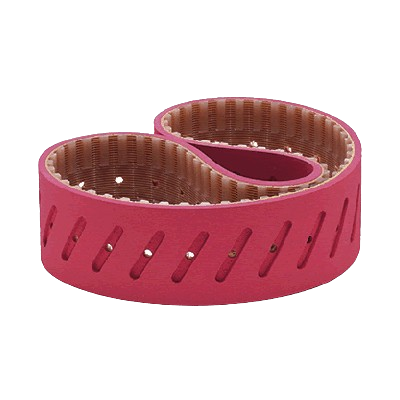

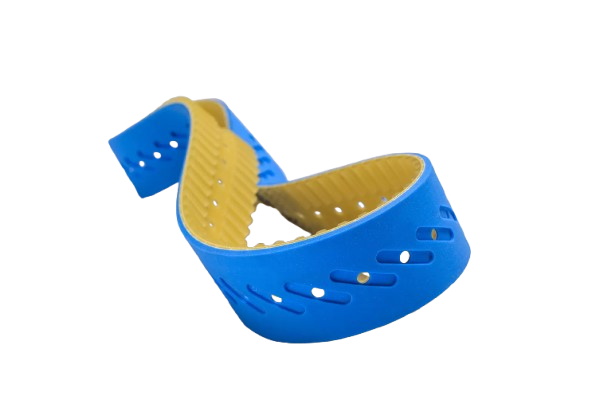

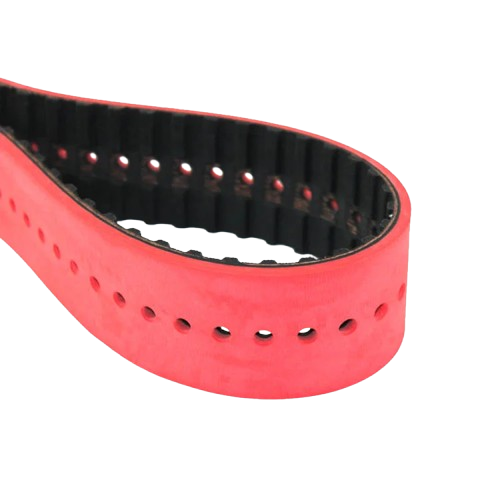

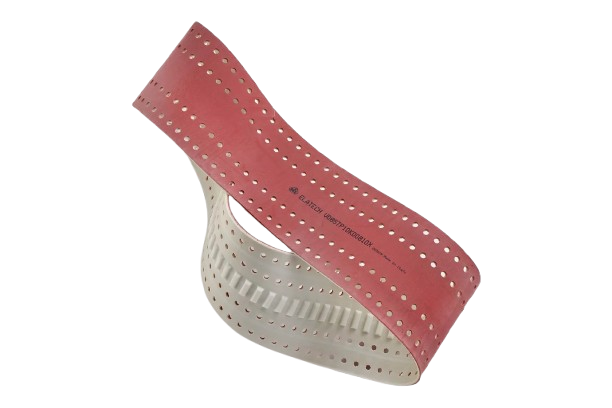

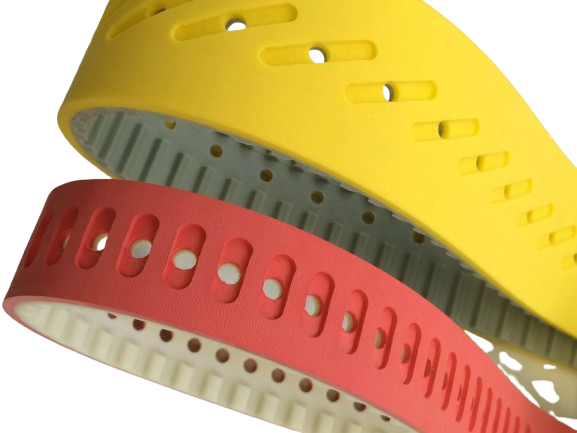

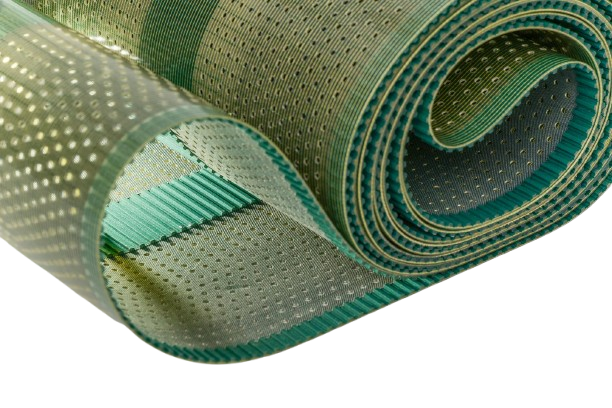

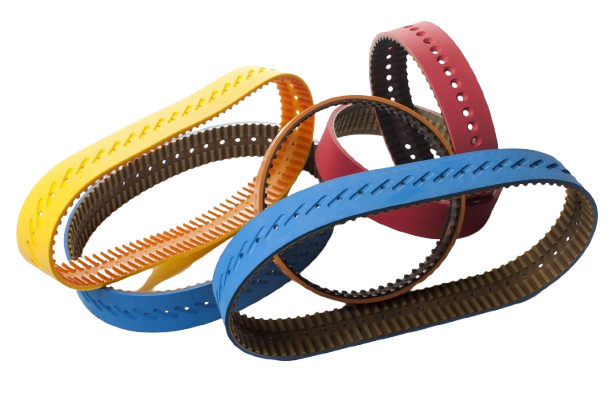

Vacuum “Pull Down” Timing Belts
At Supreme Engineers, we offer high-performance Vacuum Timing Belts specially engineered for applications that require secure product holding, precise positioning, and controlled movement using vacuum technology. Manufactured from premium polyurethane with precision-machined vacuum holes and grooves, these belts ensure stable product handling, smooth transportation, and exceptional operational accuracy.
Our Vacuum Timing Belts are available in a variety of tooth profiles, widths, perforation patterns, coatings, and custom vacuum configurations to suit specific machine designs and production requirements. They can also be manufactured with special surface finishes, high-grip covers, and wear-resistant coatings to enhance durability, improve product stability, and deliver long-lasting performance in demanding industrial environments.
Every Vacuum Timing Belt is custom-designed to achieve maximum vacuum efficiency while maintaining perfect belt tracking and consistent airflow across the conveying surface. By combining precision machining with application-specific engineering, these belts provide reliable handling of lightweight, delicate, and high-speed products, making them an ideal solution for advanced automation systems where accuracy, cleanliness, and process reliability are the highest priorities.
Vacuum Belts
With a vacuum timing belt, products and packages can be fixed to the timing belt by vacuum. This is done by grinding a vacuum chamber into the timing belt. In this way, for example, lightweight products and packaging materials can be conveyed vertically and at high speeds with precision.
Important for a Properly Functioning Vacuum Belt
To arrive at the perfect vacuum timing belt for your specific application, we use our expertise in three areas, among others:
– Minimal Vacuum Loss
By grinding the vacuum groove with high accuracy, we ensure minimum vacuum loss and thus optimum vacuum belt performance.
Furthermore, timing belts are available without a winding nose which limits additional vacuum loss.
– Wear-Resistant Coating
By applying an additional wear-resistant coating, we ensure that the timing belt has a long service life. Even when the timing belt is used intentionally or unintentionally as a friction belt.
– Optimal Grip
By selecting the right coating, we ensure that the timing belt has an optimal grip to the film or product to be conveyed. Examples of commonly used coating materials for vacuum belts include Linatex, Tenax, endless sprayed PU, silicone.
For processing options and different properties of these coatings, please contact one of our specialists.
– A Pulley That Fits Perfectly
In our dedicated pulley production, we have the ability to produce the necessary vacuum pulleys as well.
Thus, your pulleys are ready for immediate application and equipped with all the machining required for optimal performance and operation of your system.
Accuracies and tolerances of the timing belt pulleys are very important for minimum vacuum loss. In our in-house timing belt pulley production, we manufacture your pulleys to your specifications with the utmost care.
