Mechanical properties
- Low noise
- Maintenance-free operation
- Belt speeds up to 80 m/s
- Minimum preload and reduced bearing load
- High positional and angular accuracy
- High efficiency up to 98%

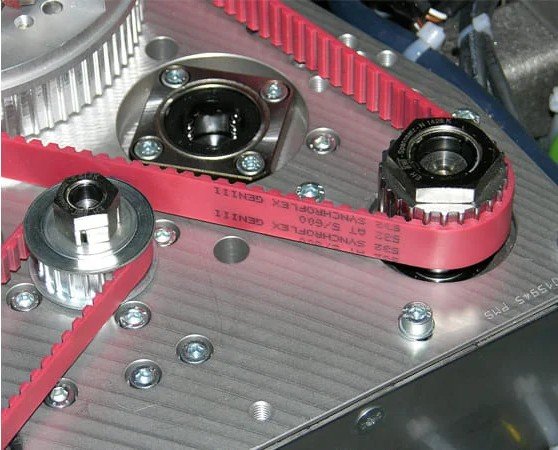

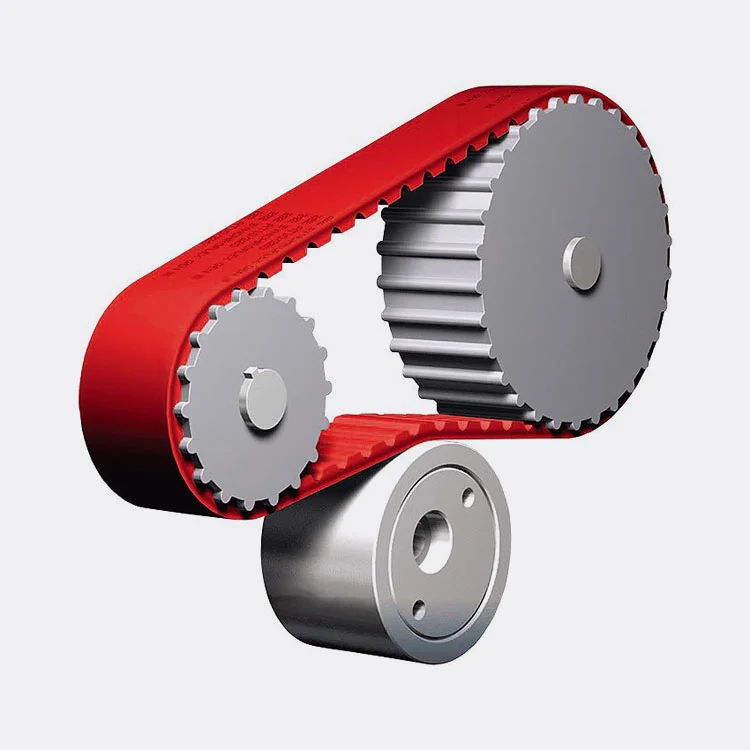

Synchroflex timing belts
CONTI® SYNCHROFLEX endless cast standard polyurethane timing belts in T and AT profiles deliver high tensile strength because of the high-quality materials used in production.
The excellent bond between wear-resistant polyurethane and galvanized steel cords forms the basis of their high power output potential.
The highly flexible production process is particularly suitable for manufacturing double-sided timing belts. The casting process provides a high degree of accuracy.
CONTI® SYNCHROFLEX offers standard PU timing belt profiles including AT3, AT5, AT10, AT20, ATP10, ATP15, T2.5, T5, T10 and T20.
These timing belts can operate at low temperatures, in clean rooms and in food-industry applications.
Contact our team for help selecting, dimensioning and calculating the correct Synchroflex timing belt.
CONTI® SYNCHROFLEX endless cast standard polyurethane timing belts in T and AT profiles deliver high tensile strength due to the high quality of the materials used in production. The excellent bond between the wear-resistant polyurethane and galvanized steel cords provides excellent power transmission, flexibility and accuracy.
CONTI® SYNCHROFLEX offers a large selection of standard PU timing belt profiles such as AT3, AT5, AT10, AT20, ATP10 and ATP15, as well as T2.5, T5, T10 and T20 timing belts. These belts allow operation at low temperatures, in clean rooms and in the food industry.
During more than 20 years on the market, we have helped many companies calculate and dimension new belt drives. With extensive expertise and suitable products and sizes, we help keep production systems operating reliably.
For help purchasing, dimensioning or calculating a new CONTITECH® SYNCHROFLEX timing belt, contact customer service at +91-9998986666 or email pulley007@gmail.com.
Production method
Endless timing belts can be manufactured in two different ways.
Synchroflex® SFX: Manufactured by ContiTech® through pressure casting in permanent moulds. These belts are available in standard belt lengths from 55 mm to 6000 mm.
Brecoflex® BFX: Manufactured by BRECO® as endless timing belts without a joint. Lengths up to approximately 22,000 mm can be produced without a joint.
BRECO M®: Manufactured in metre lengths and commonly used in linear units.
BRECO V®: Open timing belts assembled to special lengths according to the required dimensions. This design is commonly used as a conveyor belt drive.
Chemical properties
- Hydrolysis stable and durable
- Operating range from -30°C to 80°C
- Short-term temperature resistance up to 120°C
- Tropical-resistant construction
- Resistant to oil, grease and petrol
- Partially resistant to bases and acids
Almost all timing belt types are available on request with alternative tensile-member options, including stainless-steel cord, Kevlar® or aramid cord, and high-performance flexible cord.
Profile and length range
| Profile | Length range Lw (mm) |
|---|---|
| AT3 | 150 – 1011 mm |
| AT5 | 225 – 2000 mm |
| AT10 | 500 – 1940 mm |
| ATP 10 | 630 – 1800 mm |
| ATP 15 | 1125 – 1560 mm |
| AT 20 | 1000 – 1960 mm |
| T2 | 68 – 710 mm |
| T2.5 | 120 – 1300 mm |
| T2.5 – DL | 317 – 457 mm |
| T5 | 100 – 1500 mm |
| T5 – DL | 150 – 1325 mm |
| T10 | 260 – 4780 mm |
| T10 – DL | 260 – 4780 mm |
| T20 | 1260 – 3620 mm |
| MXL | 111 – 1178 mm |
